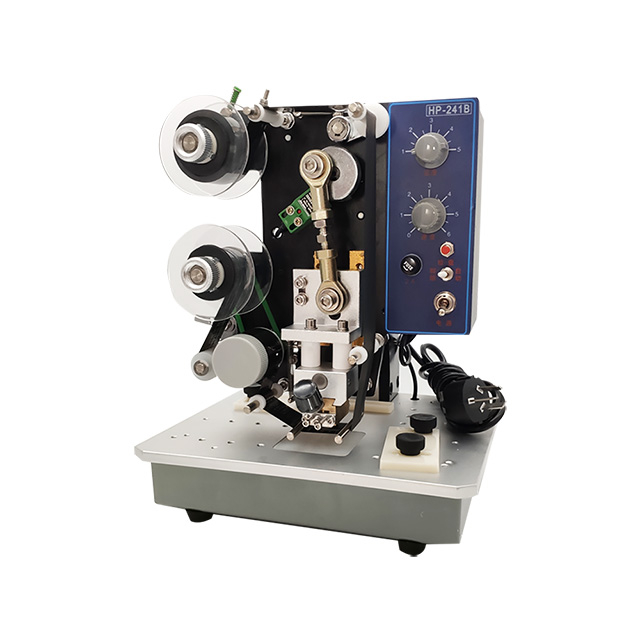

Manual coding machine-HP241b

This electric thermal coder uses automatic continuous printing. It can also be printed by foot switch. Reasonable structure, excellent design, precise processing, high quality quality make you feel comfortable with peace of mind. This machine has the functions of printing production date, expiration date, batch number, etc. The printing is clear and firm, and the writing is clear. Does not fall off. Widely used in food, medicine, leather, plastic bags, cartons, skin care products, health products, daily necessities, etc

Please click the button below to receive the free consumable samples

Availability:

Product Description

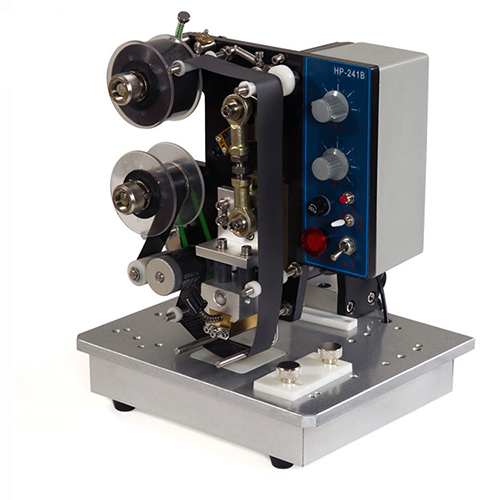

HP-241B Semi-Automatic Hot Stamp Coder uses advanced aluminum alloy anode with electric pulse processing to insure a longer life.   With the motor of the famous manufacturer and easy to operate foot controller,  it can meet heavy load and run for a long time.

H0f9c0c76bc4e4cbea51067c82252bdc9q

Product Parameters


                                                     Specifications
Model HP-241B
Print Area
Single line: max 4 mm*35 mm, about 15 characters;
                   Two lines:max 8 mm*35 mm, about 30 characters;
                   Three lines:max 12 mm*35 mm, about 45 characters;
           Numbers,letters,symbols can be printed,and any other special characters can also be customized.
Print Speed ≤ 80 times/min
Types 2*3*15 mm,  2*4*15 mm
Ribbon Size 25mm*100m,  30mm*100m,  35mm*100m,
Vol & Power AC200V±10V, 50/60Hz, 200W
Mode Semi-auto
Net Weight 8 kg



Detaied Images

矩形 1 拷贝 33

bags, film, label and leather in medicine, food industries.

矩形 1 拷贝 35

Printing position optional

矩形 1 拷贝 36

HP 241 hot stamping coding machine

1. Takes use of the hot stamp printing technology instead of the ink printing;
2. Can print clearly on various soft seal material;
3. Special change type struture, more convinient to change the type;
4. Perfect code, light weight, easy to operate, modular design, convenient maintenance and repair costs low;
5. Constant temperature control;
6. Operating temperature can be adjusted to fit for different seal material and color bar;
7. Widely used to print product date, weight etc. in the industry of the food, the drink etc.



Adopts coding foil to print clear, easy drying, non tacky and indelible characters.

矩形 1 拷贝 34

Henan Best Packing Machine Co., Ltd. is a manufacturer for Coding machine,

TTO ribbon, TTR ribbon, Coding foil,

Hot ink roller, Label paper and TTO Intelligent Printer..

Our machine includes hot stamp foil coding machine, hot ink roller coder, thermal transfer overprinter, hot ink roll,

hot coding foil, characters etc.


0ur selling teams for international business trade departs.





Model

HZ 241B

Voltage220V/50HZ

Power

200W

Printing speed

10-100pcs/min

Printing area

MAX: 11×35mm

Hot printer width

MAX: 35mm

Size(L×W×H)

255×255×315mm



Henan Best Packing Machine Co., Ltd. is a manufacturer for Coding machine,TTO ribbon, TTR ribbon, Coding foil, Hot ink roller, Label paper and TTO Intelligent Printer..

Our machine includes hot stamp foil coding machine, hot ink roller coder, thermal transfer overprinter, hot ink roll, hot coding foil, characters etc.


矩形 1 拷贝 39



0ur selling teams for international business trade departs.

矩形 1 拷贝 37矩形 1 拷贝 41矩形 1 拷贝 40
